Fiber Drop Cable Outdoor 1 2 4 Core G652 G657A1 G657A2 Ftth Single Mode Fibra Optica Wire Sc G657 Lszh Drop Cable
Description
The type of fiber optic cable puts optical fiber in the central with two parallel strength member at the two sides. The cable is completed with a black color LSZH or PVC sheath. Its pecial groove design makes it is easily to strip and splice, simplified installation and maintenance.
The indoor fiber construction comprises of 1,2,4 cores optical fibers, 2 parallel FRP (Fiber Reinforced Plastic) strength member and LSZH Jacket. Outdoor FTTH cable construction is similar to the indoor cable, except the cable has a supporting wire for aerial installation.
FTTH Drop Cable is used in high speed and broadband telecommunication applications. It is suitable for both indoor and outdoor applications.
Features
* Used as access building cable.
* Jacket: LSZH or PVC
* Steel wire used for self-supporting
* FTTH cable, 1, 2, 4 cores
* Soft and flexible, good bending performance
* Excellent tensile and crush performance

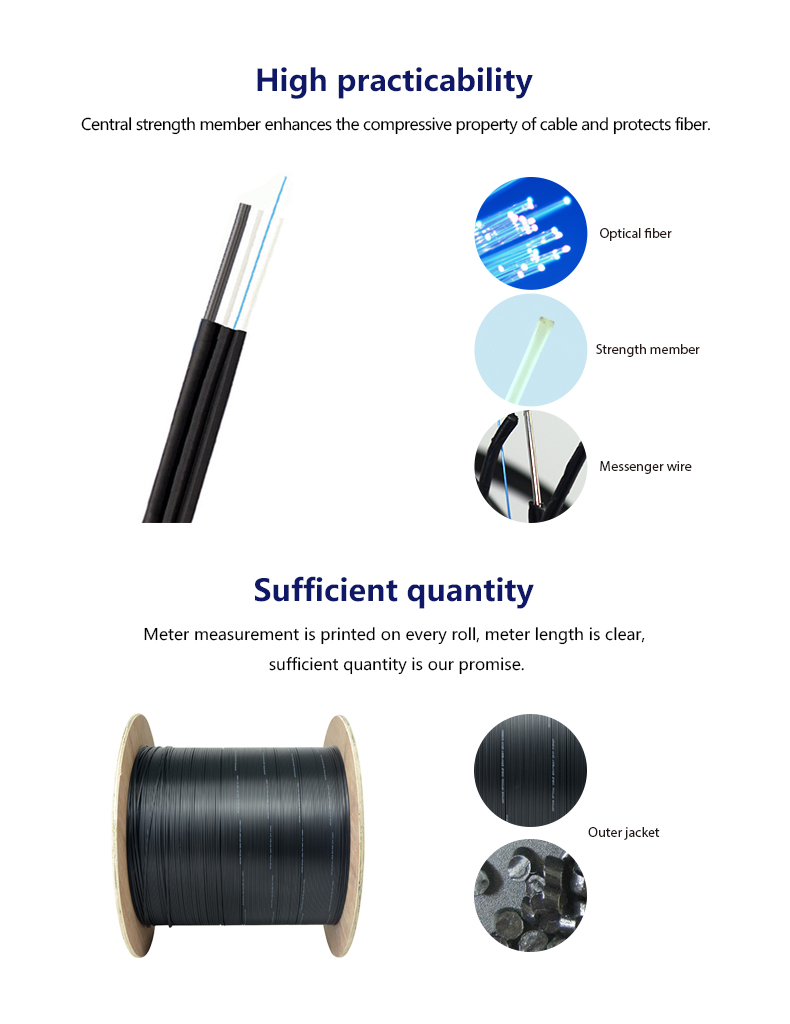

* Optical fiber cores are positioned in the center, two strength member are placed at the two sides.
* Strength member: steel wire, FRP or KFRP
* Used in indoor cabling, and end users directly cabling;
| (Item) | | (Parameters) |
| Fiber | Color | All colors display |
| | Number of cores | 4 |
| Strength member | Material | FRP |
| Messenger wire | Material | Phosphating steel wire |
| Outer jacket | Material | LSZH(Oxygen index≥26%) |
| | Color | Black |
| Cable diameter (Rip off the messenger wire) (mm) | 2.0±0.2*4.0±0.2 | |
| | Static | 15mm |
| Min. bending radius(Rip off the messenger wire) | Dynamic | 30mm |
| Tensile performance | Short term | 600N |
| Crush | Short term | 2200N/100mm |
Package Information

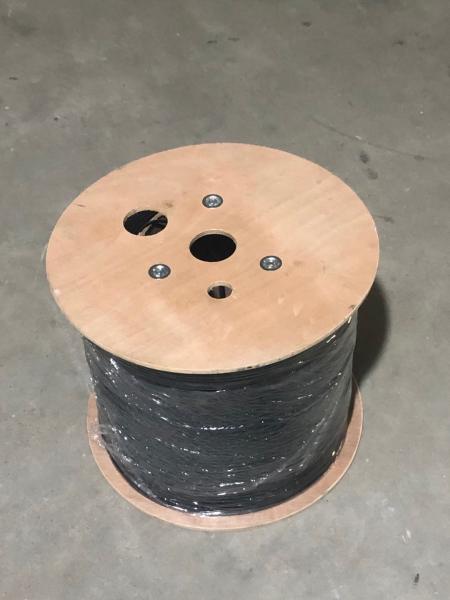

1, The exterior self supporting drop fiber optic cable is packed 2KM/Wooden drum, each drum packed in a standard paper carton size at 41*41*36cm. each carton gross weight is 30~40kgs.
2, or, the The exterior self supporting drop fiber optic cable is packed in wooden drum and pack directly in the pallet.
Certificate
Our services
Our Certificate
Package and delivery
Package:
Standard Wooden Drum With Protection.
Standard reel length:2/3/4/5km/reel,other length is also available
Shipping
For the large order , we usually ship the cable by sea .
For small order , we can ship them by sea (LCL) or by air /by exress
(DHL,UPS,FEDE or TNT..) as your request .
1. Are you the real factory?
Yes,we are the real factory with 20 years’ history.
2. What is your fiber brand?
Fiber brands including :ZXOFC
3. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
4. Product quality guarantee period?
25 years’ Guarantee for fiber optic cable
5. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
6. What is your delivery time?
Within 24 hours for 30KM normal kinds of fiber optic cable;
1 ~2 days for fiber optic patch cords with 10000 connectors.
7. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
8. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
9. Payment
For large orders: T/T by advanced deposit
For small orders: T/T,Western Union and Paypal are acceptable.
10. Shipping & Delivery
For large orders: by sea (LCL or FCL)
