FTTH Double-Fly Indoor Cable 2 Core Drop Optical Fiber Cable With G652D G657A Fiber
Description
FTTH double-fly indoor cable, in the center there are two optical fiber units, Two parallel FRP/KFRP or steel wire are placed at the two
sides of the optical fiber units separately. Then the cable is completed with a black or color LSZH sheath.
Optical Characteristics
· Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
· Two parallel FRP/KFRP or steel wire strength members ensure good performance of crush resistance to protect the fiber;
· Simple structure, light weight and high practicability;
· Special tube filling compound ensure a critical protection of fiber.
· Single steel wire or stranded steel wires together with the strength member , ensure good tensile properties of the fiber cable;
· Novel flute design, easily strip and splice, simplify the installation and maintenance;
· Low smoke, zero halogen and flame retardant sheath.
· Unique double-fly design make the installation more simple, time-saving and cut down cost.
Optical Characteristics
| | G.652 | G.655 | G657A1 | G.657A2 |
| Attenuation
(+20℃) | @850nm | | | | |
| @1300nm | | | | |
| @1310nm | ≤0.45/km | ≤0.40/km | ≤0.40/km | ≤0.40/km |
| @1550nm | ≤0.30/km | ≤0.30/km | ≤0.30/km | ≤0.30/km |
| Cable Cut-off Wavelength λcc | | ≤1260nm | ≤1260nm | ≤1260nm | ≤1260nm |
Technique Parameters
| Fiber count | Cable diameter mm | Cable weight Kg/km | Tensile strength
long/Short term
N | Crush resistant
long/Short term N/100m | Bending radius
Static/dynamic mm |
| 2*1 | (2.0±0.2)×(6.0±0.2) | 20 | 150/300 | 300/1000 | 15D/30D |
| 2*2 | (2.0±0.2)×(6.0±0.2) | 20 | 150/300 | 300/1000 | 15D/30D |
| 2*4 | (2.0±0.2)×(6.0±0.2) | 20 | 150/300 | 300/1000 | 15D/30D |

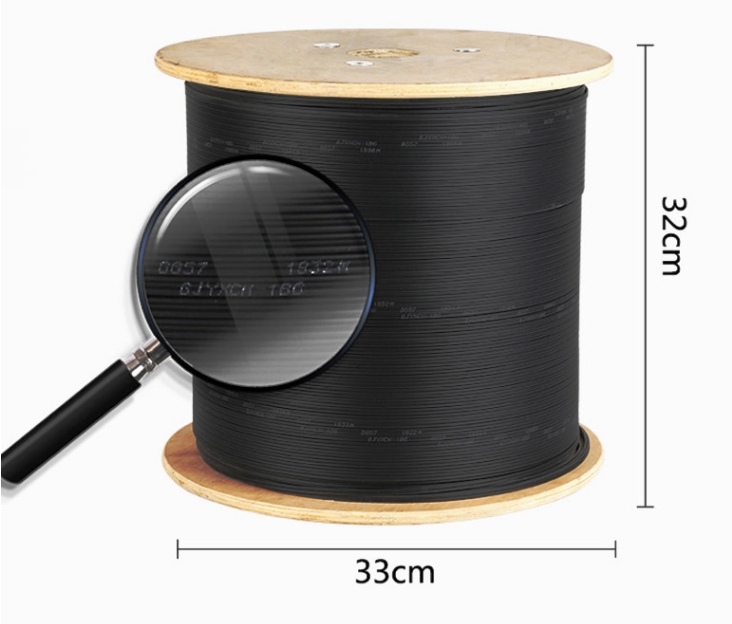

Packaging Details
1-2KM per roll. Packed by wooden drum. Other packing available according to client`s Request.
Sheath mark:
The following printing(white hot foil indentation)is applied at 1meter intervals.
a. Supplier: ZXOFC or as customer required;
b. Standard Code(Product Type, Fiber Type,Fiber Count);
c. Year of manufacture: 14 years;
d. Length marking in meters.
Port:
Hongkong/Shenzhen
Lead Time:
| Quantity(KM) | 1-300 | ≥300 |
| Est.Time(Days) | 15 | To be Negotiated! |
Note
The Packing standard and details as above is estimated and final size&weight shall be confirmed before shipment.
The cables are packed in carton, coiled on Bakelite & wooden drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture, kept away from high temperature and fire sparks, protected from over bending and crushing, protected from mechanical stress and damage.
