Self Supporting Wire FTTH Drop Cable LSZH 1 2 4 Core With ISO CE ROHS Certification

Name: Self Supporting Wire FTTH Drop Cable LSZH 1 2 4 Core With ISO CE ROHS Certification
Brand: ZXOFC
Price: 1 USD

China Self Supporting Wire FTTH Drop Cable LSZH 1 2 4 Core With ISO CE ROHS Certification wholesale

Brand Name : ZXOFC

Model Number : ZXOFC-GJYXCH

Certification : ISO CE ROHS

Place of Origin : ShenZhen,China

MOQ : 10KM

Price : Negotiable

Payment Terms : T/T, Western Union,Paypal,Credit card

Supply Ability : 10000KM per month

Delivery Time : 1-2 weeks according to the lengths

Packaging Details : Plywood drum or Iron wooden drum or Fumigated wooden drum or Cardboard box (mainly for FTTH cable) Optional

Application : Outdoor, Building, access network,

Fiber Model : g652d,g657

Jacket : LSZH

Color : Black or white

No. of cable : 1,2,4 Core

Contact Now

Self Supporting Wire LSZH 1 2 4 Core Ftth Fiber Optic Drop Ftth Cable 2 Core Fibra Optica Cable

Description

Fiber:

250µm colorfiber

Fiberglass reinforced plastic (FRP) or Steel Wire.

Self-supported Member:

Steel Wire

Outer Jacket:

UV and Flame resistant LSZH

Features

Compact, soft, flexible, easyto install.

Applications

Used in access network oras access cable from outdoorto indoor
in customer premises network.
Used as access building cable in premises distribution system,especially used in indooror outdooraerial access cabling.

Optical Characteristics

Fiber Type	Attenuation		Overfilled launch Bandwidth	Effective Modal Bandwidth	10GB/S Ethernet link length	Min Bending Radius
Conditions	1310/1550nm	850/1300nm	850/1300nm	850nm	850nm
Unit	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G652D	0.36/0.22					16
G657A1	0.36/0.22					10
G657A2	0.36/0.22					7.5
50/125		3.0/1.0	≥500/500			30
62.2/125		3.0/1.0	≥200/500			30
OM3		3.0/1.0	≥1500/500	≥2000	≥300	30
OM4		3.0/1.0	≥3500/500	≥4700	≥550	30
B1-OM3		3.0/1.0	≥1500/500	≥2000	≥300	7.5
B1-OM4		3.0/1.0	≥3500/500	≥4700	≥550	7.5

Structure and Technical Specifications

Fiber Count	Cable Diameter (mm)	Cable Weight (kg/km)	Tensile Strength (N/100mm)		Crush Resistance (N/100mm)
			Short Term	Long Term	Short Term	Long Term
1-4	5.2*2.0	18	600	300	2200	1000
6-12	3.0*9.0	27	1200	600	1100	500

Note :1.This datasheet can only be a referance,but not a supplement to the contract,Please contact our sales people for

more information.

2.The cable core use the colored coating fiber of 250μm.

3.The tensile and crush of the cable are accordance with the values in the table when the strength member of FRP and Steel are used

We produce and test cable comply with following standard

Mechanical Performance
Max Tension Performance	IEC 60794–1-2-E
Max. Operation Tension	IEC 60794–1-2-E1
Crush Test	IEC 6079 –1-2-E3
Impact Test	IEC 60794–1-2-E4
Repeated Bending	IEC 60794–1-2-E6
Torsion Test	IEC 60794–1-2-E7
Cable bend	IEC 60794–1-2-E11A
Attenuation Coefficient	ITU-T G.652
Structural Test	IEC-60793-1-20
Environmental Performance
Temperature Cycling	IEC 60794–1-2-F1
Water Penetration	IEC 60794–1–2-F5B
Filing Compound Flow	IEC 60794-1-E14

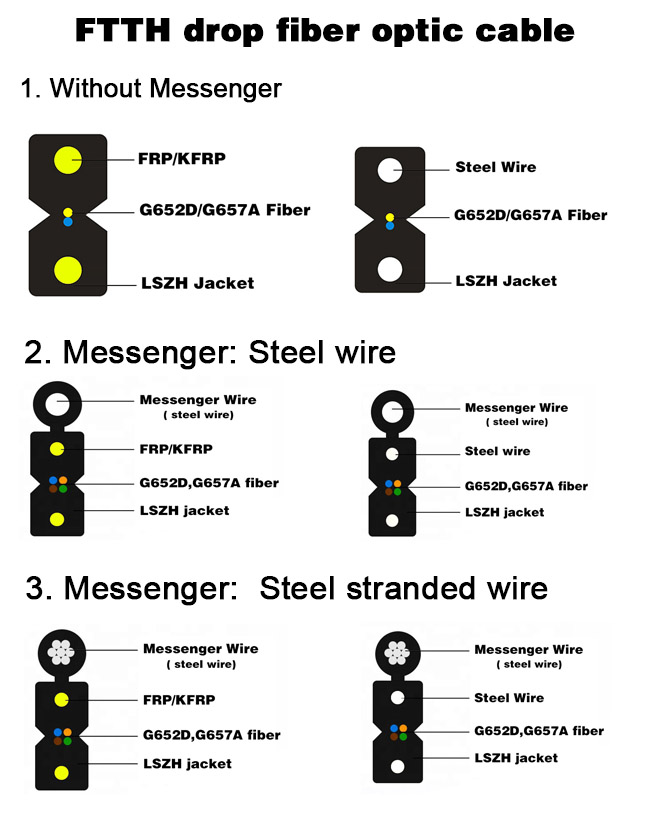

Cable structure

Package and Shipping

Packaging	Wooden drum, 2000m to 6000m/drum or as you required
Shipping methods.	By sea or by air
Sheath mark applied at 1-meter intervals	a. Supplier: ZXOFC or as customer required
	b. Standard Code(Product Type, Fiber Type, Fiber Count)
	c. Year of manufacture
	d. Length marking in meters

FAQ

1. Are you the real factory?

Yes,we are the real factory with 20 years’ history.

2. What is your fiber brand?

Fiber brands including :ZXOFC

3. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

4. Product quality guarantee period?

25 years’ Guarantee for fiber optic cable

5. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

6. What is your delivery time?

Within 24 hours for 30KM normal kinds of fiber optic cable;

1 ~2 days for fiber optic patch cords with 10000 connectors.

7. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

8. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

9. Payment

For large orders: T/T by advanced deposit

For small orders: T/T,Western Union and Paypal are acceptable.

10. Shipping & Delivery

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services,any of which is optional.
