Ftth Outdoor 2 Core G657a Fiber Optic Drop Cable 2.0*3.4 Mm Diameter With Lszh Jacket

Name: Ftth Outdoor 2 Core G657a Fiber Optic Drop Cable 2034 Mm Diameter With Lszh Jacket
Brand: ZXOFC
Price: 1 USD

China Ftth Outdoor 2 Core G657a Fiber Optic Drop Cable 2.0*3.4 Mm Diameter With Lszh Jacket wholesale

Brand Name : ZXOFC

Model Number : ZXOFC-GJFXH

Certification : CE,ISO9001,ROSH

Place of Origin : ShenZhen,China

MOQ : 10KM

Price : Negotiable

Payment Terms : T/T, Western Union,Paypal,Credit card

Supply Ability : 10000KM per month

Delivery Time : 1-2 weeks according to the lengths

Packaging Details : Plywood drum or Iron wooden drum or Fumigated wooden drum or Cardboard box (mainly for FTTH cable) Optional

Fiber count : 1 core 2 core 4 core

Fiber type : G657A1 ,G657A2,G652D

Jacket Materials : LSZH (pvc Optional )

Customized : Available

Cable Color : Black or White

Cable diameter : 2.0*3.4 mm

Contact Now

Ftth Outdoor 2 Core G657A Fiber Optical Cable With Lszh Jacket

Description

Fiber to the home (FTTH) is a fiber optic communication delivery form where the fiber extends from a central office to the

boundary of a home living space or business office. Once it reaches the home or business office, the signal is conveyed

throughout the space using coaxial cable, wireless, optical fibers or power line communication.

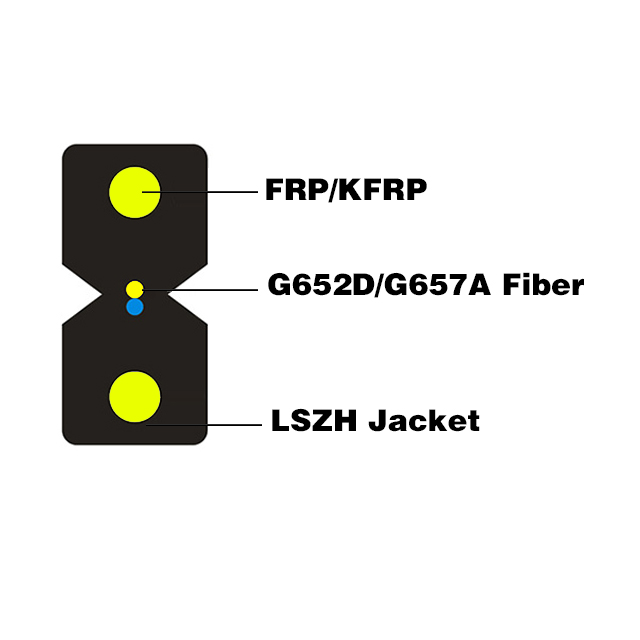

Cable Structure

Cable parameters

Optical Characteristics
		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	'@850nm			≤3.0 dB/km	≤3.0 dB/km
	'@1300nm			≤1.0 dB/km	≤1.0 dB/km
	'@1310nm	≤0.36 dB/km	≤0.40 dB/km
	'@1550nm	≤0.22 dB/km	≤0.23 dB/km
Bandwidth (Class A)	'@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	'@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm

Technical Parameters
Fiber Count	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short TermN	Crush Resistance Long/Short Term N/100mm	Bending Radius Static/Dynamic mm
1	2.0x3.0	8	30/60	300/1000	15D/30D
2	2.0x3.4	8.5	30/60	300/1000	15D/30D
3	2.0x3.8	9	30/60	300/1000	15D/30D
4	2.0x4.0	10	30/60	300/1000	15D/30D
Storage/Operating Temperature : -40℃ to + 70℃

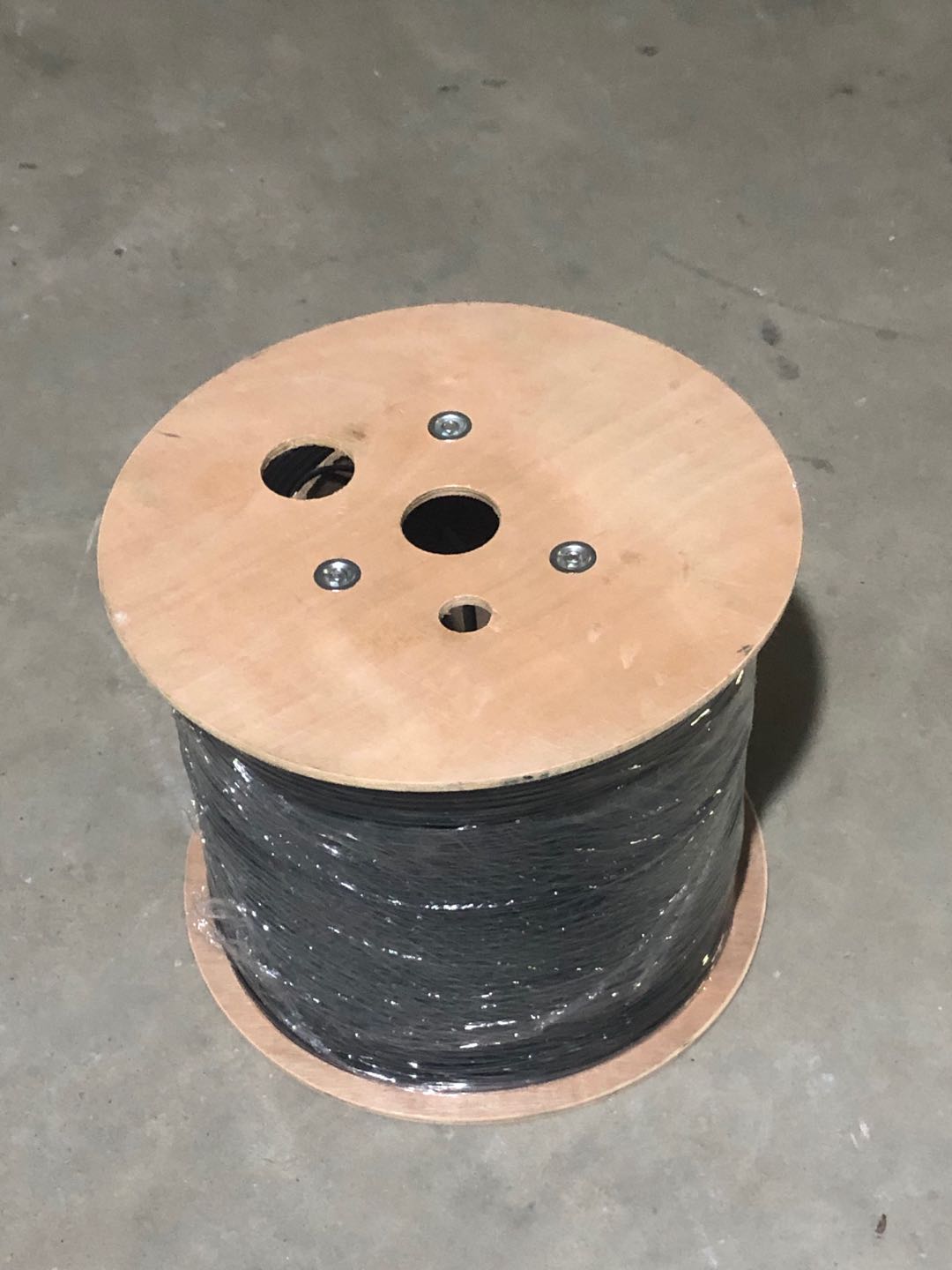

Package Photos:

Our Company

FAQ

1. Are you the real factory?

Yes,we are the real factory with 20 years’ history.

2. What is your fiber brand?

Fiber brands including :ZXOFC

3. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

4. Product quality guarantee period?

25 years’ Guarantee for fiber optic cable

5. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

6. What is your delivery time?

Within 24 hours for 30KM normal kinds of fiber optic cable;

1 ~2 days for fiber optic patch cords with 10000 connectors.

7. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

8. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

9. Payment

For large orders: T/T by advanced deposit

For small orders: T/T,Western Union and Paypal are acceptable.

10. Shipping & Delivery

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services,any of which is optional.
