FTTH 1-Core 2-Core 4-Core Drop Cable GJXH with LSZH/ PVC Jacket
Description

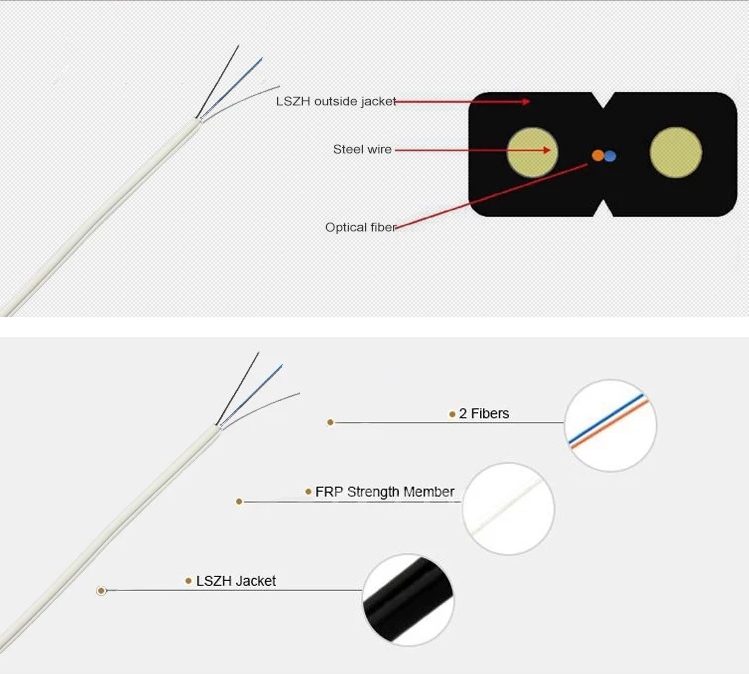

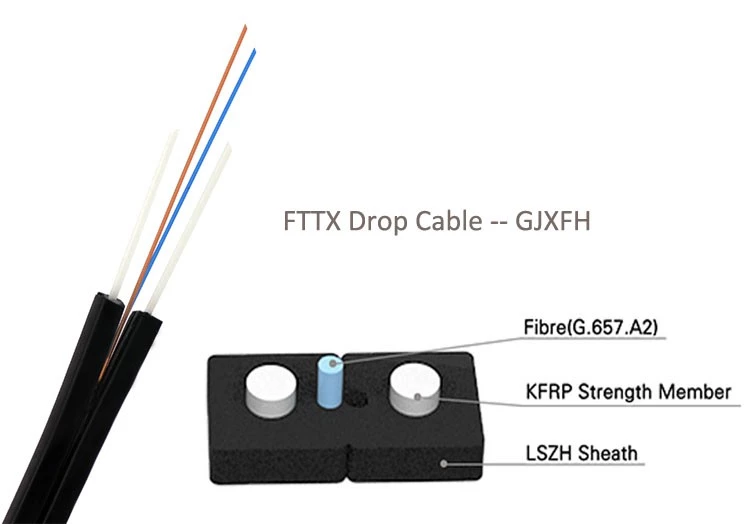

GJXFH/GJXH type FTTH indoor cable, the optical fiber unit is positioned in the center. Two parallel Fiber Reinforced steel wires(or FRP) are placed at the two sides. Then the cable is completed with a black or color LSZH sheath.
Features
Adopt fiber with small bending radius (G.657), offering good bending resistance;
Simplified installation and maintenance, easy for splicing;
Easy cable stripping without need of tools, easy cable fixation and low cost of installation;
Suitable for termination at the field or factory pre-connectorized
Suitable for dropping in residential buildings, rat proof function, reliable and stable quality
Low smoke, zero halogen and flame retardant sheath
Fiber Type: G652D ,50/125, 62.5/125 ,G657A ,G657A2 ,OM3-150 ,OM3-300 ,OM4
Jacket material: PVC, LSZH
Technical Parameters
| Cable Code | Cable Count | Cable Size
(mm) | Cable Weight
(kg/km) | Tensile
(N) | Crush
(N/100mm) | Crush resistance
(mm) | Range of temperature
( ° C |
| Long Turn | Short Turn | Long Turn | Short Turn | Dynamic | Static |
| GJXH-01 | 1 | 3.0*4.0 | 15 | 40 | 80 | 500 | 1000 | 30D | 15D |
-20-60 |
| GJXH-02 | 2 | 3.0*4.0 | 17 | 40 | 80 | 500 | 1000 | 30D | 15D |
| GJXH-04 | 4 | 4.1*6.1 | 20 | 40 | 80 | 500 | 1000 | 30D | 15D |
Application
Package & Delivery
Packaging Details:
Carton box,Wooden reel,2Km/drum
Inter packing: wooden reel,plastic reel or paper reel
Outer packing: carton box,pull out box
PS:OEM service is available for the GJXFH Drop Cable
Delivery Time:
Generally shipped within 3~7 days after the prepayment.
Sheath mark:
The following printing(white hot foil indentation)is applied at 1meter intervals.
a. Supplier: ZXOFC or as customer required;
b. Standard Code(Product Type, Fiber Type,Fiber Count);
c. Year of manufacture: 14 years;
d. Length marking in meters.
Port:
Hongkong/Shenzhen
Lead Time:
| Quantity(KM) | 1~50 | 50~100 | 100~300 | ≥300 |
| Est.Time(Days) | Within 7 days | 5-10 days | 7-15 days | To be Negotiated! |
Note
The Packing standard and details as above is estimated and final size&weight shall be confirmed before shipment.
The cables are packed in carton, coiled on Bakelite & wooden drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture, kept away from high temperature and fire sparks, protected from over bending and crushing, protected from mechanical stress and damage.
