G657A1 FIBER OPTIC INDOOR 2 CORE FIBRE OPTIC NETWORK FTTH DROP CABLE G657A FIBER
Description
Drop cables are located on the subscriber end to connect the terminal of a distribution cable to a subscriber’s premises. They are typicality small diameter, low fiber count cables with limited unsupported span lengths, which can be installed aerially, underground or buried. As it is used in outdoor, drop cable shall have a minimum pull strength of 1335 Newtons according to the industry standard. Drop cables are available in many different types.
Flat Type Drop Cable, also known as flat drop cable, with a flat out-looking, usually consists of a polyethylene jacket, several fibers and two dielectric strength members to give high crush resistance.
Figure-8 Aerial Drop Cable is self-supporting cable, with the cable fixed to a steel wire, designed for easy and economical aerial installation for outdoor applications.
Round Drop Cable usually contains a single bend-insensitive fiber buffered and surrounded by dielectric strength members and an outer jacket, which can provide durability and reliability in the drop segment of the network.
Characteristics:
Good mechanical and environmental characteristics;
Flame retardant characteristics meets the requirements of relevant standards;
The mechanical characteristics meets the requirements of relevant standards;
Soft, flexible, easy to splice, and with big capacity data transmission;
Meet various requirements of market and clients.
Application:
Local Area Network
Used end user directly cabling
FTTH(Fiber to the home )indoor cabling and distribution (video,audio and data signals)
Technology Parameter:
| Cable type | OD MM | Nominal wight(KG/KM) | Tensile strength(N) | Crush Resistance(N/100mm) | Bendign Radius |
| Short term | Long term | Short term | Long term | Dynamic | Static |
| GJXFH-1Xn | (2.0±0.1)*(3.0±0.1) | 7.5 | 200 | 100 | 1000 | 500 | 20D | 15D |
| GJXFH-2Xn | (2.0±0.1)*(3.0±0.1) | 7.5 | 200 | 100 | 1000 | 500 | 20D | 15D |
| GJXFH-4Xn | (2.0±0.1)*(3.0±0.1) | 7.5 | 200 | 100 | 1000 | 500 | 20D | 15D |
| | | | | | | | | |
Packaging Details:
1-2KM per roll. Packed by wooden drum. Other packing available according to client`s Request.

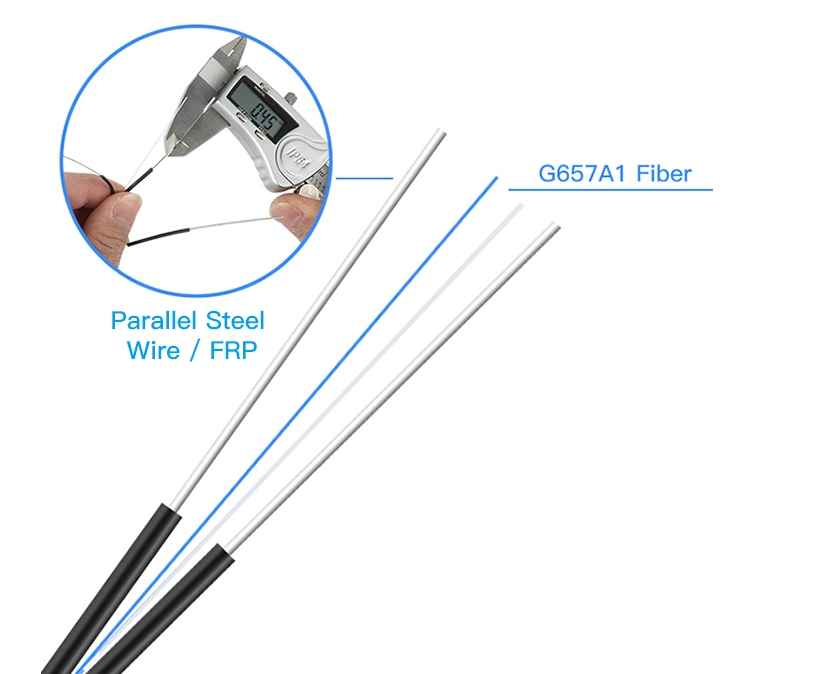

Photo Show:
Sheath mark:
The following printing(white hot foil indentation)is applied at 1meter intervals.
a. Supplier: ZXOFC or as customer required;
b. Standard Code(Product Type, Fiber Type,Fiber Count);
c. Year of manufacture: 14 years;
d. Length marking in meters.
Port:
Shenzhen
Lead Time:
| Quantity(KM) | 1-50 | 50-100 | 100-300 | ≥300 |
| Est.Time(Days) | 7 | 7-10 | 7-15 | To be Negotiated! |
Note
The Packing standard and details as above is estimated and final size&weight shall be confirmed before shipment.
The cables are packed in carton, coiled on Bakelite & wooden drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture, kept away from high temperature and fire sparks, protected from over bending and crushing, protected from mechanical stress and damage.
