Butterfly Fiber Optic Drop Cable Ftth Outdoor Indoor Cable Gjyxch / Gjxh / Gjyxfch
Description
GJYXCH (Metal strength member, LSZH jacket, Self-Supporting)
GJYXDCH (Optical fiber ribbon, Metal strength member, LSZH jacket, Self-Supporting)
GJYXFCH (Non-metal strength member, LSZH jacket, Self-Supporting)
GJYXFDCH (Optical fiber ribbon, Non-metal strength member, LSZH jacket, Self-Supporting)
Optical Characteristics
Good mechanical and environmental characteristics.
Flame retardant characteristics meet the requirements of relevant standard.
The mechanical characteristics meet the requirements of relevant standard.
Soft, flexible, easy to lay and splice, and with big capacity data transmission.
Meet various requirements of market and clients.
Parameters
| Type | Fiber Count | Specifications | Weight | Tensile(N) | Crush(N) | Bending Radius(mm) |
| (mm) | (kg/km) | Long | Short | Long | Short | Static | Dynamic |
| | | term | term | term | term |
| GJYXCH | 1, 2, 4 | 2.0×5. 0 | 18. 1 | 100 | 200 | 1000 | 2200 | 15 | 30 |
| Low friction GJYXCH | 1, 2 | 1. 6×3.7 | 15. 2 | 100 | 200 | 1000 | 2200 | 15 | 30 |
| GJYXDCH | 4 | 2.0×6. 0 | 18. 2 | 100 | 200 | 1000 | 2200 | 15 | 30 |
| GJYXFCH | 1, 2, 4 | 2.0×5. 0 | 13.5 | 40 | 80 | 500 | 1000 | 15 | 30 |
| Low friction GJYXFCH | 1, 2 | 1. 6×3.7 | 17. 0 | 40 | 80 | 500 | 1000 | 15 | 30 |
| GJYXFDCH | 4 | 2.0×6. 0 | 17. 1 | 40 | 80 | 500 | 1000 | 15 | 30 |
Noted:
1. Only a part of Aerial/Duct/Direct Buried/UnderGround/Armoured cables are listed in the table. Cables with other specifications can be inquired.
2. Cables can be supplied with a range of single mode or multimode fibers.
3. Specially designed Cable structure is available on request.
Packaging Details:
1-2KM per roll. Packed by wooden drum. Other packing available according to client`s Request.
Sheath mark:
The following printing(white hot foil indentation)is applied at 1meter intervals.
a. Supplier: ZXOFC or as customer required;
b. Standard Code(Product Type, Fiber Type,Fiber Count);
c. Year of manufacture: 14 years;
d. Length marking in meters.
Port:
Hongkong/Shenzhen
Lead Time:
| Quantity(KM) | 1-300 | ≥300 |
| Est.Time(Days) | 15 | To be Negotiated! |
Note
The Packing standard and details as above is estimated and final size&weight shall be confirmed before shipment.
The cables are packed in carton, coiled on Bakelite & wooden drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture, kept away from high temperature and fire sparks, protected from over bending and crushing, protected from mechanical stress and damage.
Product Tags:
|
|

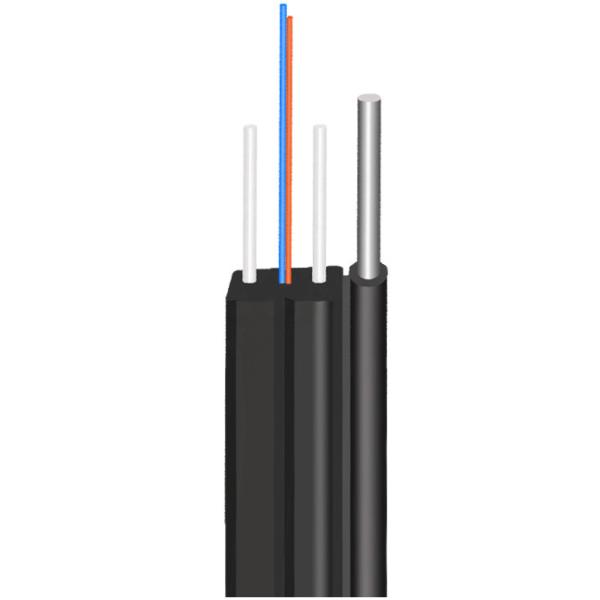

Butterfly Outdoor FTTH Drop Cable Gjyxch Gjxh Gjyxfch LSZH Self Supporting Images
|
