36 Core GYFTY Outdoor Fiber Optic Cable SM PVC LSZH Aerial Non-Metallic 36 Core Optical Fiber Cable
Description

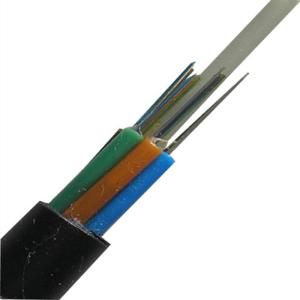

The GYFTY fiber optic cable,The loose tube fiber optic cable,the fibers, 250um, are positioned in a loose tube made of a high modulus plastics. The
tubes are filled with a water-resistant filling compound . A fiber Reinforced Plastics (FRP) locates in the center of core as a non-metallic strength
member.The tubes (and fillers) are stranded around the strength member into a compact and circular cable core.
Then the cable core is covered with a thin Polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress. A layer of water
blocking material is applied around the cable core to prevent it from water ingress all the same, the cable is completed with a PE outer sheath.
Features:
.Selected high quality optical fiber ensure the optical fiber cable have excellent transmission properties
.The unique fiber excess length control metheod provides the cable with excellent mechanical and environmental properties
.Very strict material and manufacturing control guarantees the cable can work stably
.Special jelly fillded in the loose tube provides the fibers with critical protection
.Total cross-section water-resistant structure makes cable have excellent properties of moisture resistance
.The central member adopted high young's modulus FRP member.
.The cable use all dielectric non-mental structure,light in weight,easily to lay, excellent anti-electric-magnetic properties, Suitable for environment
with high electric field strength in the Power communication system and the area where frequent thunder happens
Application:
. Aerial,Duct
. Non-metallic Strength member Suitable for environment with high electric field strength in the Power
communication system and the area where frequent thunder happens
Technical Parameters:
| Cable Type | Fiber
Count | Cable
Diameter
mm | Cable Weight kg/km | Tensile Strength Long/
Short Term N | Crush Resistance Long/Short Term N/100mm | Min Bending Radius Long
/Short Term | Storage
temperature
(°C) |
| GYFTY 2-60 | 2-60 | 9.8 | 65 | 600/1500 | 300/1000 | 10D/20D | -40+60 |
| GYFTY 62-72 | 62-72 | 10.5 | 85 | 600/1500 | 300/1000 | 10D/20D | -40+60 |
| GYFTY 74-96 | 74-96 | 14.5 | 145 | 600/1500 | 300/1000 | 10D/20D | -40+60 |
| GYFTY 98-144 | 98-144 | 18.3 | 185 | 600/1500 | 300/1000 | 10D/20D | -40+60 |
