Aerial 24 Core Multimode OM3-300 ADSS Fiber Optical Cable

Aerial 24 Core ADSS Multimode OM3-300 Fiber Optical Cable

Description

The multi-mode 24-core ADSS optical cable adopts all-dielectric materials and is suitable for laying of high-voltage lines. The outer sheath can be

made of HDPE or electric constant material. The span can meet the distance of 200 meters for 2 poles. The optical fiber uses YOFC multi-mode

optical fiber, which has the characteristics of low attenuation and strong tensile strength.

Feature

• Non-metal strength member
• High Strength Kevlar yarn member
• Replacing existing aerial ground wires
• Upgrading communications lines of power systems
• Synchronous planning and designing when new aerial power lines are to be constructed
• Conducting large fault short-circuit current and providing lightning protection

Application:

• Adopted to Outdoor distribution
• Network in high electromagnetic interfering places
• Suitable for aerial network
• Long distance and local area network communication
• Can be installed conveniently and operated simply
• Product Parameter

  No. of cable			/	24~30	32~60	62~72	96
  Design (StrengthMember+Tube&Filler)			/	1+5	1+5	1+6	1+8
  Fiber type			/	G.652D
  Central Strength Member		Material	mm	FRP
  		Diameter (±0.05mm)		1.5	1.5	2.1	2.1
  Loose Tube		Material	mm	PBT
  		Diameter (±0.05mm)		1.8	2.1	2.1	2.1
  		Thickness (±0.03mm)		0.32	0.35	0.35	0.35
  		MAX.NO./per		6	12	12	12
  Water Blocking Layer		Material	/	Flooding Compound
  Inner Sheath		Material	mm	MDPE
  		Thickness		0.9(nominal)
  		colour		black.
  Additional Strength Member		Material	/	Aramid Yarn
  Outer Sheath		Material	mm	MDPE
  		Thickness		1.8(nominal)
  		colour		black.
  Cable Diameter(±0.2mm)			mm	11.1	11.7	12.3	14.1
  Cable Wetght(±10.0kg/km)			kg/km	100	111	122	135
  Attenuation coefficient	1310nm		dB/km	≤0.35
  	1550nm			≤0.21
  Cable breaking strength(RTS)			kn	≥12.0
  Working Tension (MAT)			Kn	≥5.0
  Wind velocity			m/s	30
  Icing			mm	5
  Span			M	200
  Crush Resistance	Short Term		N/100mm	≥2200
  	Long Term			≥1100
  Min. bending radius	Without Tension		mm	10.0×Cable-φ
  	Under Maximum Tension			20.0×Cable-φ
  Temperature range (℃)	Installation		℃	-20~+60
  	Transport&Storage			-40~+70
  	Operation			-40~+70

  Fibre & Loose Tube Colors

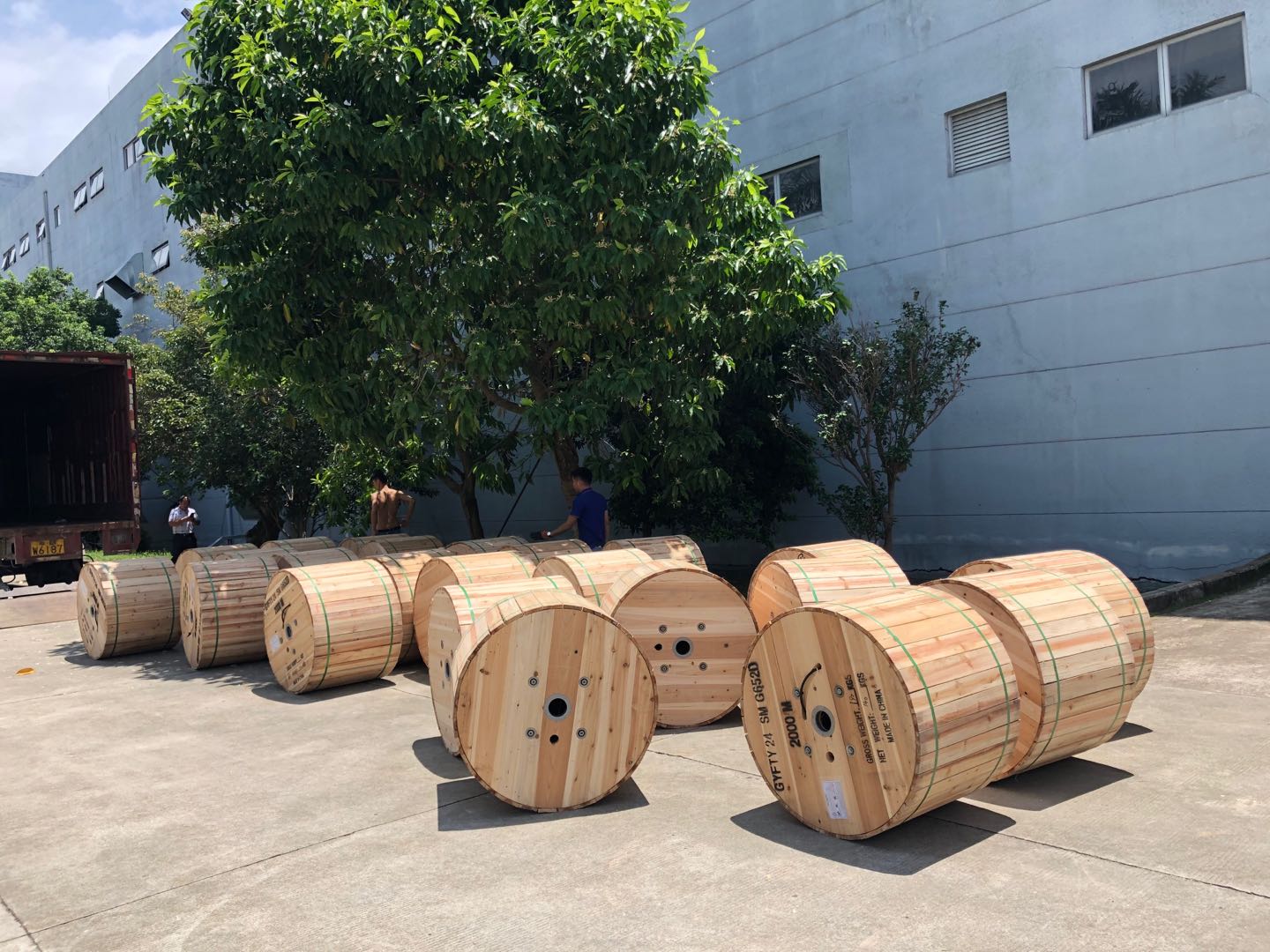

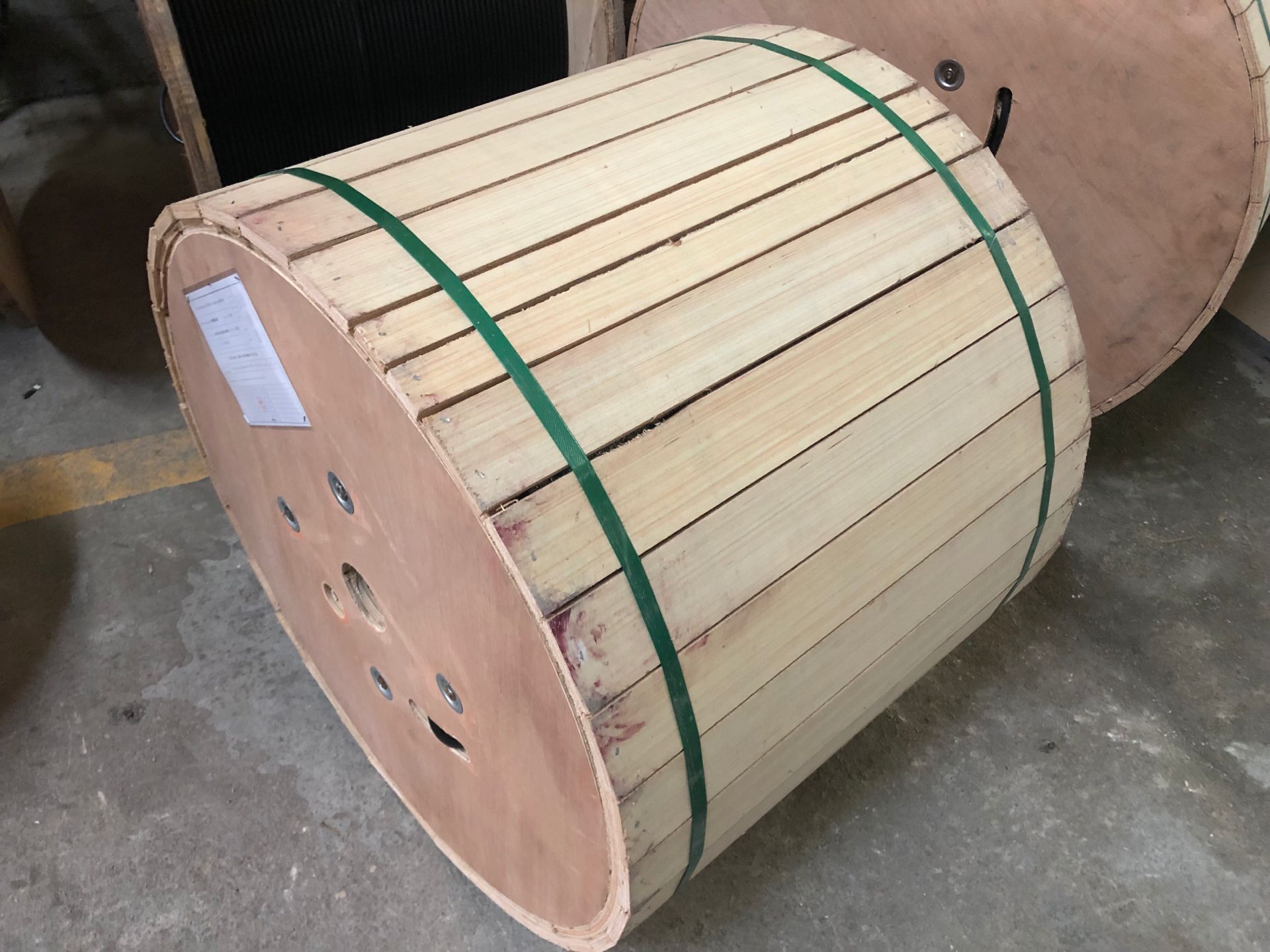

Packaging & Shipping
