Fullaxs Outdoor Waterproof LC Duplex Fiber Optical Patch Cord Fiber To The Antenna Cable Assemblies
Description
Outdoor optical fiber connector has the characteristics of solid structure, reliable connection, waterproof and dust-proof. It is widely used for remote
wireless base station ftta (optical fiber to tower) and optical transmission and connection under outdoor harsh environment such as mine, sensor
and power. It is suitable for outdoor environment and can withstand severe environmental conditions and harsh weather conditions.
Features
Indoor/outdoor introduction cable: eliminates transmission requirements for indoor ONT;
Mini-sc connector technology: industry standard for existing FTTx installations;
Design flexibility: quick connection to external flush mounted baffle adapter to lid or terminal;
Robust design: the one-piece gripper/connector cover on the mini-sc connector is designed for up to 100 pounds of tension and can be pulled out
through a 1.25-inch catheter
Application
◆ Optical fiber communication in outdoor harsh environment
◆Outdoor communication equipment connection
◆ Communication equipment connection
◆ Oil field and mine communication connection
◆ remote wireless base station
◆ Video monitoring system
◆ Optical fiber sensing
◆ Railway signal control and Application
◆ Intelligent substation communication
Specification
| Insertion loss | ≤0.2dB |
| Return loss | SM/UPC≥50 SM/UPC≥50dB,SM/APC≥60dB,MM≥35dB
SM/UP |
| SM/UPC≥50 SM/UPC≥50dB,SM/APC≥60dB,MM≥35dB
SM/UP | |
| Mechanical life | 500cycles |
| Working temperature | -40°C~+70°C |
| Storage temperature | -40°C~+70°C |
| Operating temperature | -10°C~+50°C |
| Protection Level | IP67 |
| Tensile Data | Tensile between junction and fiber cable≥100N |
| Authentication | Meet with RoHS |

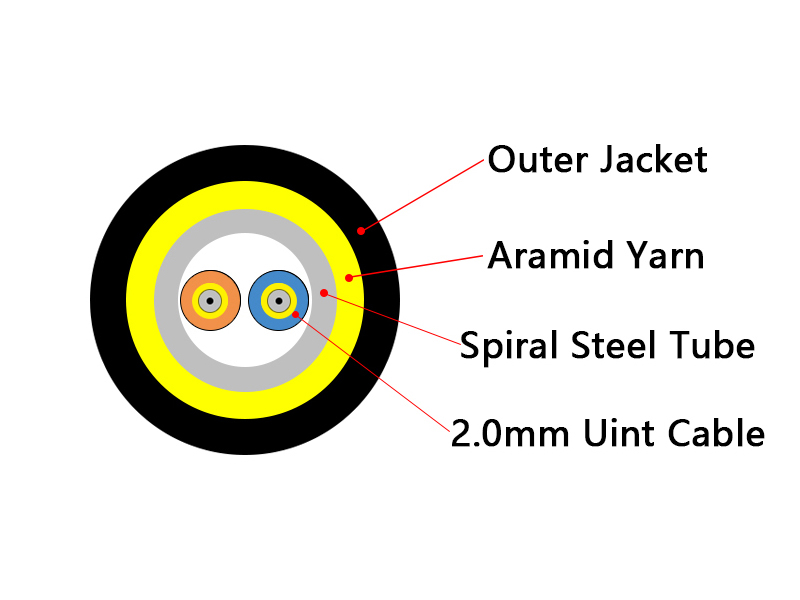

Cable specification
Specification
| item | value |
| Place of Origin | China |
| | Zhejiang |
| Brand Name | oceancomm |
| Model Number | Fullaxs to LC |
| Type | FTTx Solutions |
| Use | FTTX |
| Product name | Fullaxs Outdoor Waterproof Fiber Optical patch cord |
| No. of Fiber | 2 |
| Connector Type | LC Duplex |
| Type | Outdoor Waterproof |
| Color | Black |

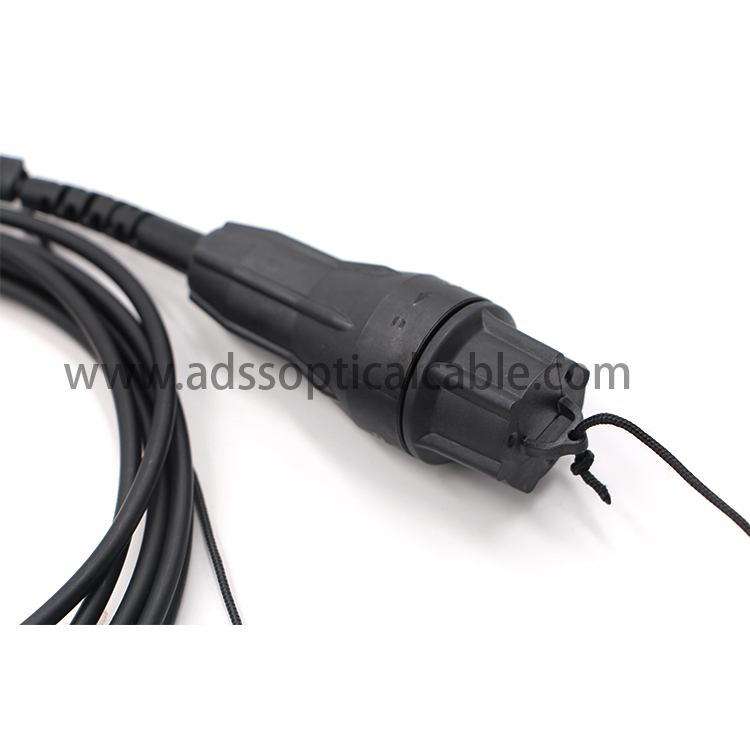

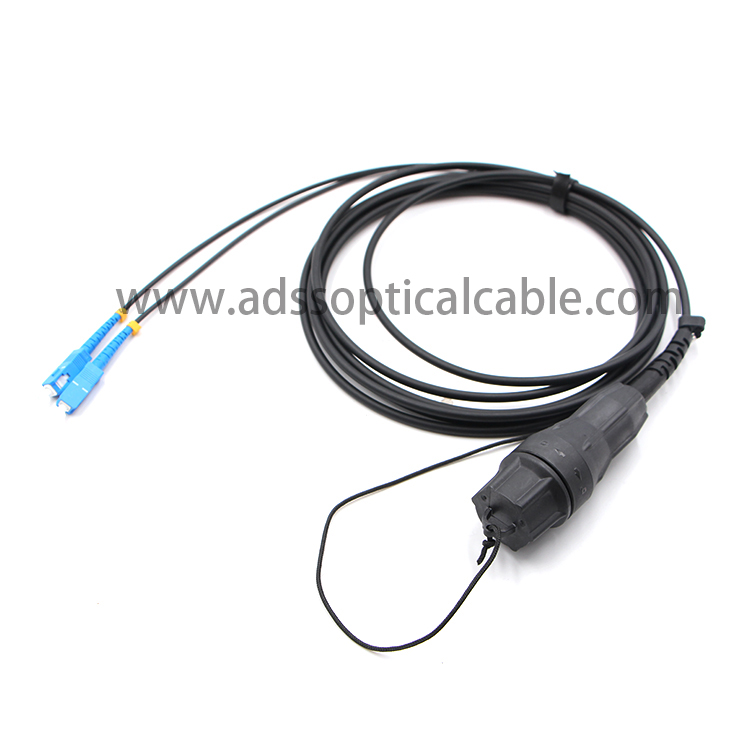

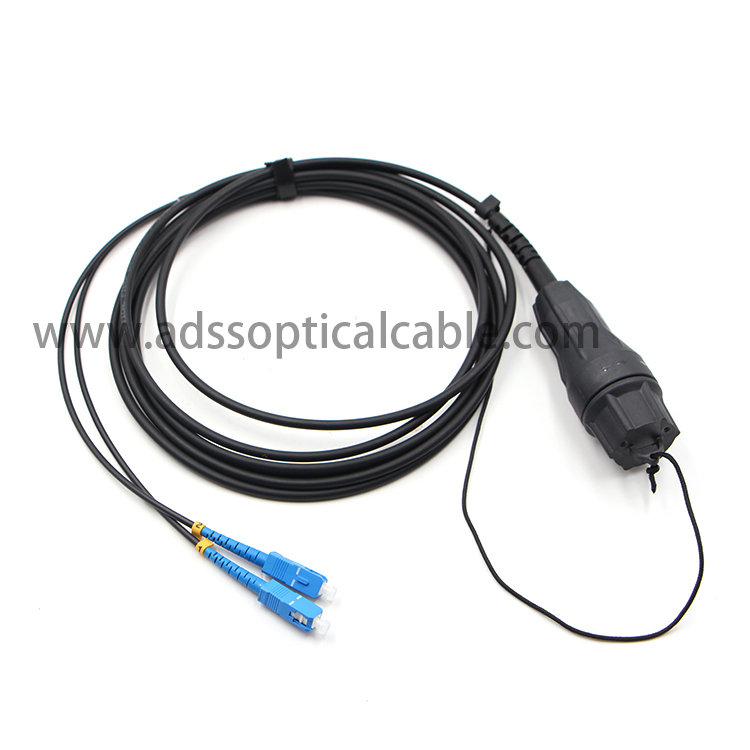

Product photos
Quality Control
1.Connector attenuation comply with “Grade B” according to IEC 61753 and IEC 61300-3-34(0.12dB mean,<0.25dB Max for >97% of samples,Return Loss >55dB)
2.All products factoy tested
3,Geometrical Characteristics comply with IEC 61755-3-1
4,All materials comply with IEC and ROHS
5,CPR test repots.

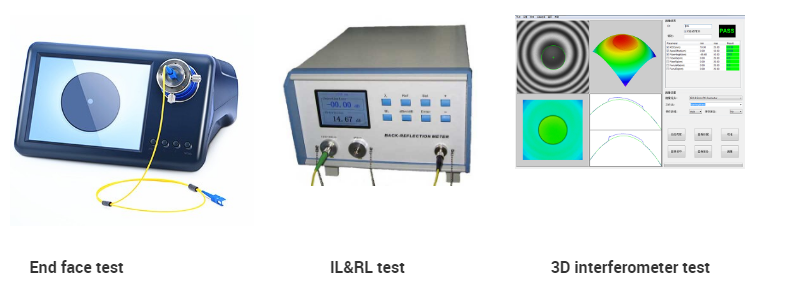

Our test program including: end face test,3D interferometer test, singlemode IL&RL
test, multimode IL&RL test.
Package:
Standard Paper box With Protection.
other length is also available
Shipping
For the large order , we usually ship the cable by sea .
For small order , we can ship them by sea (LCL) or by air /by exress
(DHL,UPS,FEDE or TNT..) as your request .
FAQ
1. Are you the real factory?
Yes,we are the real factory with 20 years’ history.
2. What is your fiber brand?
Fiber brands including :ZXOFC
3. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
4. Product quality guarantee period?
25 years’ Guarantee for fiber optic cable
5. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
6. What is your delivery time?
Within 24 hours for 30KM normal kinds of fiber optic cable;
1 ~2 days for fiber optic patch cords with 10000 connectors.
7. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
8. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
9. Payment
For large orders: T/T by advanced deposit
For small orders: T/T,Western Union and Paypal are acceptable.
10. Shipping & Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services,any of which is optional.
Product Tags:
|
|
FTTx G652D LC Duplex Fullaxs Fiber Optical Patch Cord Images
|
