4 16 Core G657 Self Supporting Aerial Cable Outdoor Unitube Non Metallic GYFXY G652D

Name: 4 16 Core G657 Self Supporting Aerial Cable Outdoor Unitube Non Metallic GYFXY G652D
Brand: ZXOFC
Price: 1 USD

China 4 16 Core G657 Self Supporting Aerial Cable Outdoor Unitube Non Metallic GYFXY G652D wholesale

Brand Name : ZXOFC

Model Number : GYFXY

Certification : CE,ISO9001,ROSH

Place of Origin : ShenZhen,China

MOQ : 5KM

Price : Negotiable

Payment Terms : T/T, Western Union,Paypal,Credit card

Supply Ability : 10000KM per month

Delivery Time : 1-2 weeks according to the lengths

Packaging Details : Plywood drum or Iron wooden drum or Fumigated wooden drum or Cardboard box (mainly for FTTH cable) Optional

Packing : Plywood Reel/customized

Jacket Material : PE PVC LSZH HDPE

Product name : Uni-Tube Non-metallic & Non-armored Fiber Optic Cable

Application : Long distance/LAN communication/Outdoor communication

Length : 2000M/box or Optional

Fiber Type : G652/G655/62.5/50/OM3

Leading Time : 3-15 days

Contact Now

GYFXY G652D 4 16 Core g657 Single Mode Outdoor Unitube Aerial Fiber Optical Cable

Description

The structure of GYFXY cable is 250µm optical fiber is inserted into a loose tube of high modulus material, and the loose tube is

filled with gel filling compound The loose tube is added with water-blocking to ensure longitudinal water seepage of optical

cable.Two parallel glass fiber reinforced plastics (FRP) are placed on both sides,and then the cable is completed with PE outer

sheath.

Product Characteristics

• Material of loose tube has good mechanical properties and temperature characteristics

• Material of loose tube has good hydrolysis resistance and high strength

• The tube is filled with special filler to provide critical protection for the fiber

• The two parallel FRP strength member provides enough tensile strength

• Anti-UV PE out sheath • Small diameter, light weight, easy for laying

Applications

• Overhead

Structural Parameter

Model No.

Fiber count

Cable Weight

(kg/km)

Tension

Long / short term
(N)

Crush Resistance

Long / short term
(N)

Bending radius

Static/dynamic
mm

GYFXY-2~12Xn

2~12

400/1000

300/1000

10D/20D

GYFXY-14~24Xn

14~24

Transport / Storage / Use Temperature: -40 °C ~ +70 °

Fiber Type	Fiber attenuation(+20℃)				Bandwidth		Numerical aperture	Cut-off wavelength of optic fiber cable
Fiber Type	@850nm	@1300nm	@1310nm	@1550nm	@850nm	@1300nm	Numerical aperture	Cut-off wavelength of optic fiber cable
G.652	---	---	≤0.36dB/km	≤0.22dB/km	---	---	---	≤1260nm
G.655	---	---	≤0.40dB/km	≤0.23dB/km	---	---	---	≤1450nm
50/125µm	≤3.3dB/km	≤1.2dB/km	---	---	≥500MHz·km	≥500MHz·km	0.200±0.015 NA	---
62.5/125µm	≤3.5dB/km	≤1.2dB/km	---	---	≥200MHz·km	≥500MHz·km	0.275±0.015 NA	---

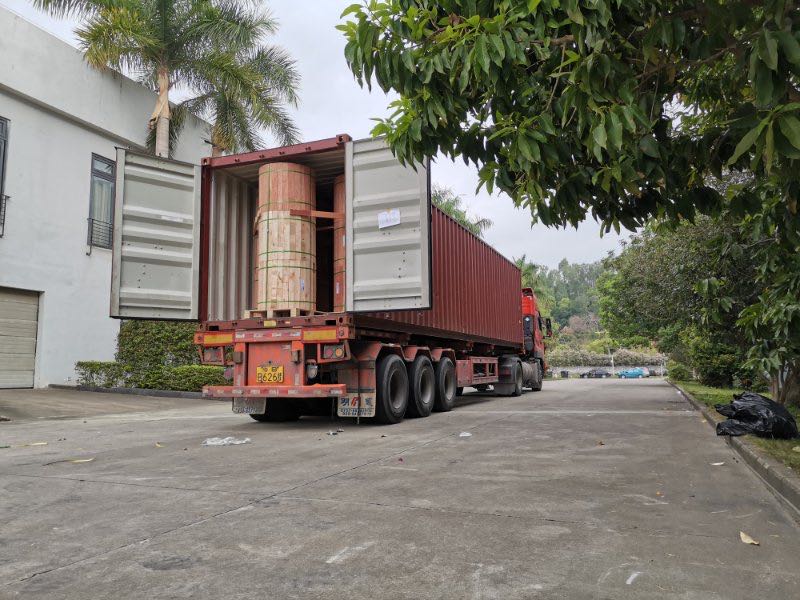

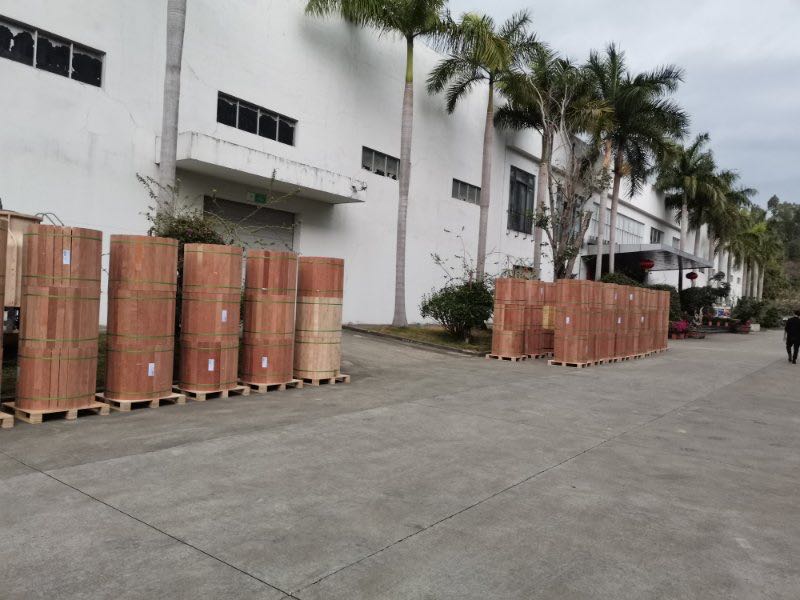

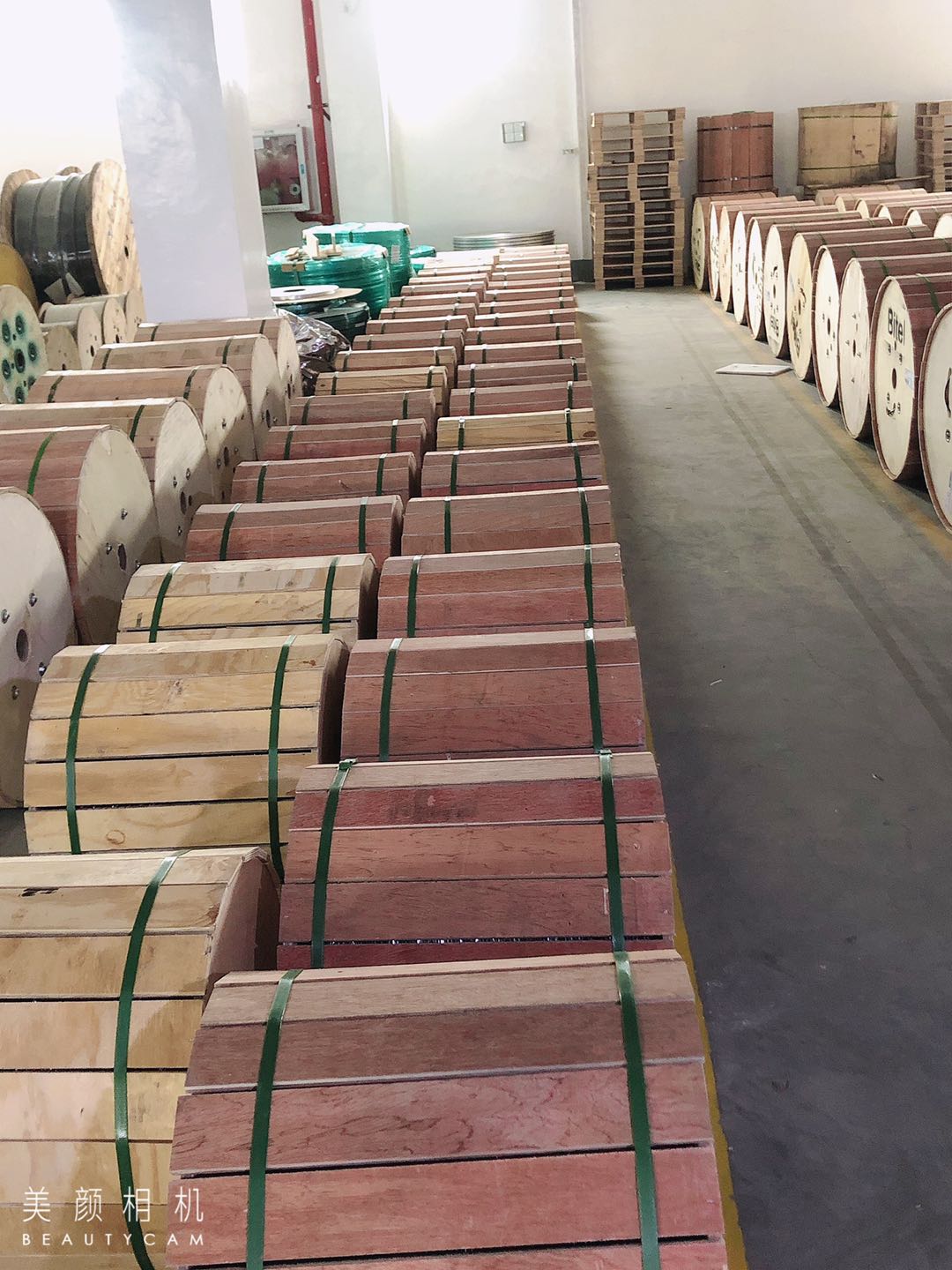

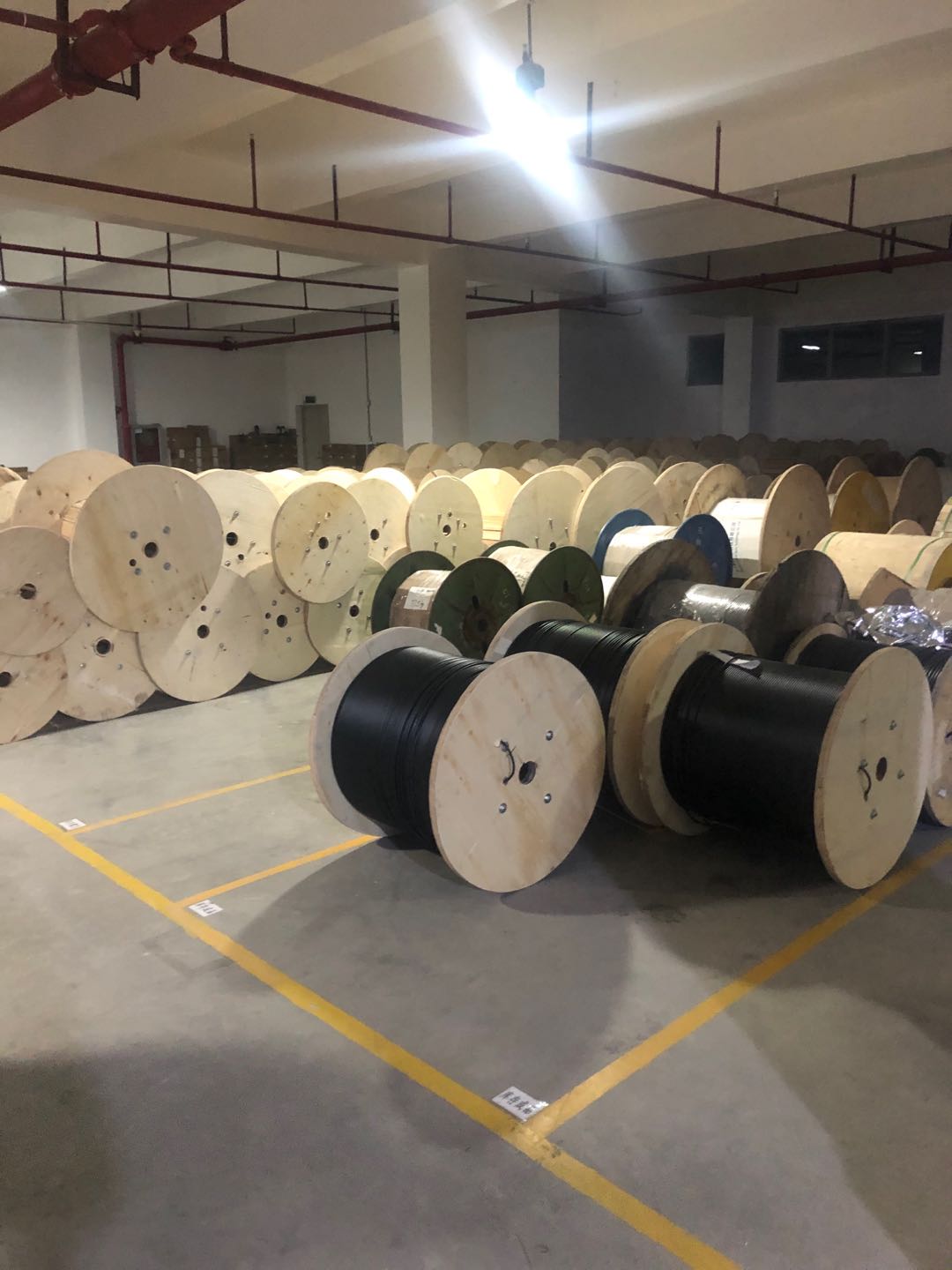

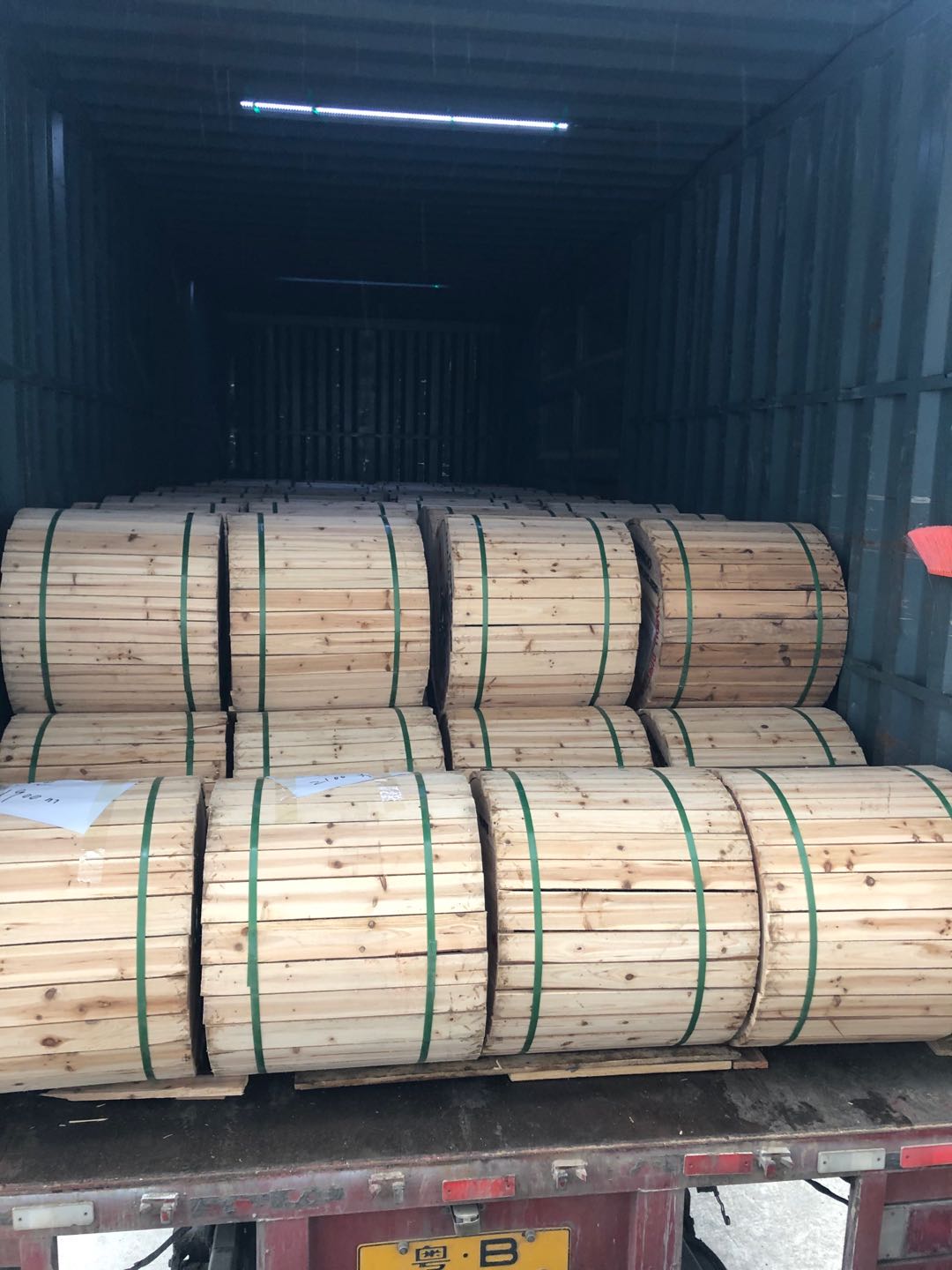

Packaging & Shipping

The fiber optic cable are packed in carton, coiled on Bakelite & wooden drum. During transportation, right tools should beused to avoid damaging the package and to handle with ease.Cables should be protected from moisture; kept away fromhigh temperature and fire sparks; protected from over bending and crushing; protected from mechanical stress and damage.

4 16 Core G657 Self Supporting Aerial Cable Outdoor Unitube Non Metallic GYFXY G652D

FAQ

1. Are you the real factory?

Yes,we are the real factory with 20 years’ history.

2. What is your fiber brand?

Fiber brands including :ZXOFC

3. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

4. Product quality guarantee period?

25 years’ Guarantee for fiber optic cable

5. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

6. What is your delivery time?

Within 24 hours for 30KM normal kinds of fiber optic cable;

1 ~2 days for fiber optic patch cords with 10000 connectors.

7. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

8. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

9. Payment

For large orders: T/T by advanced deposit

For small orders: T/T,Western Union and Paypal are acceptable.

10. Shipping & Delivery

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services,any of which is optional.
