12core 24core SM MM fiber coring glass fibre optic cable mpo/mtp patchcord fiber optical mpo patch cord
Description

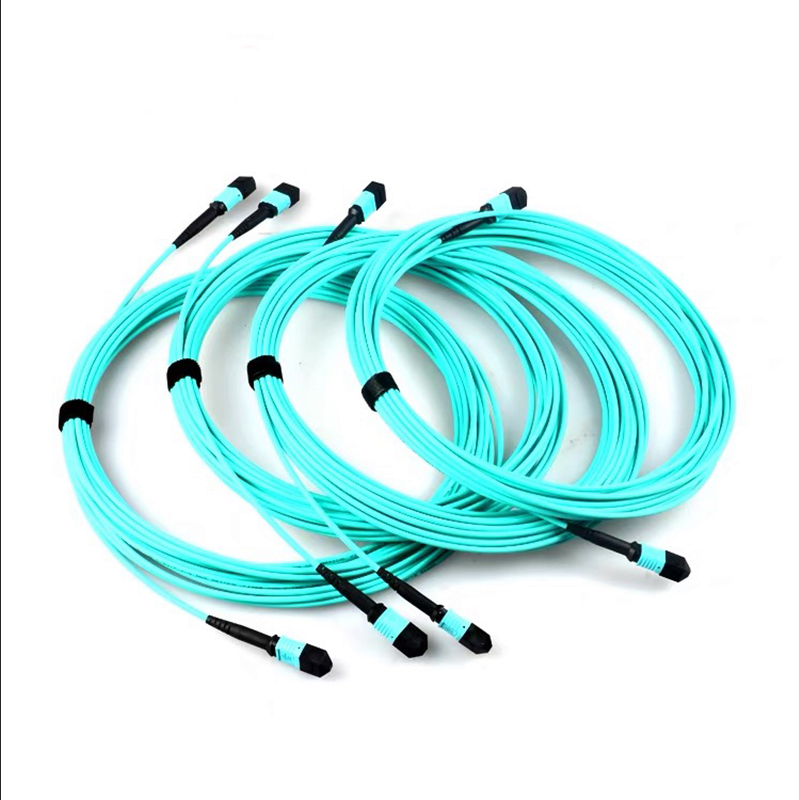

MPO trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which
need space saving and reduce cable management troubles.

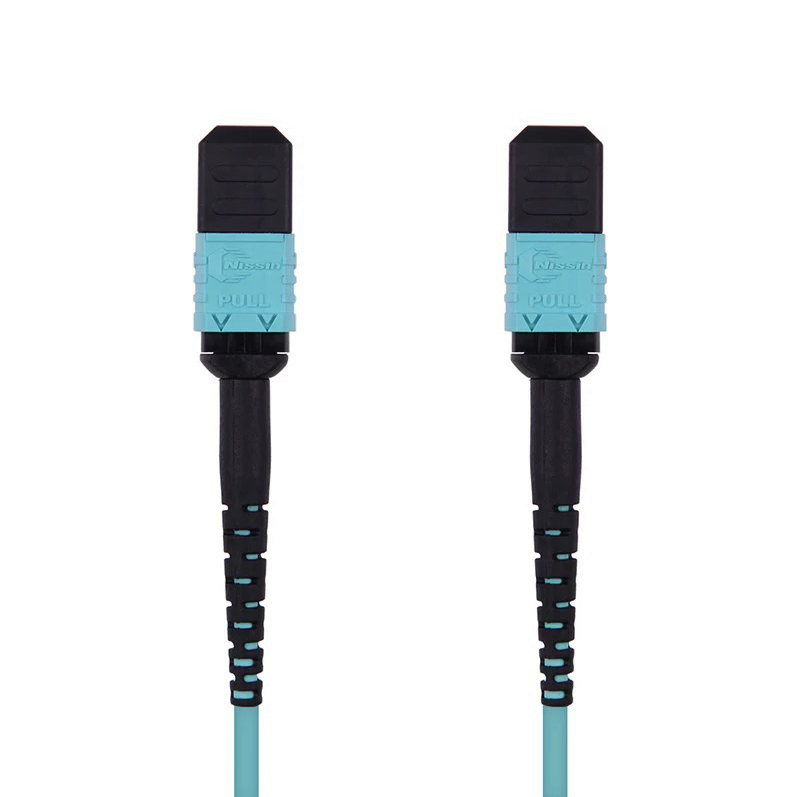

0.35dB IL; MPO Female to MPO Female connector; 3.0mm LSZH bunch cable designed for 40G QSFP+ SR4, 40G QSFP+ CSR4 and 100G
QSFP28 SR4 optics direct connection and high-density data center.
Features
High Performance in IL & RL
4,8,12 and 24 fiber connector terminations and assemblies
Designed for low loss and standard loss SM and MM applications
Economical solution for mass-termination of fiber
Suitable for MPO/MTP application
Ruggedized round cable, oval cable and bare ribbon options available
Color coded housings available to differentiate fiber type, polish type and/or connector grade
Parameters

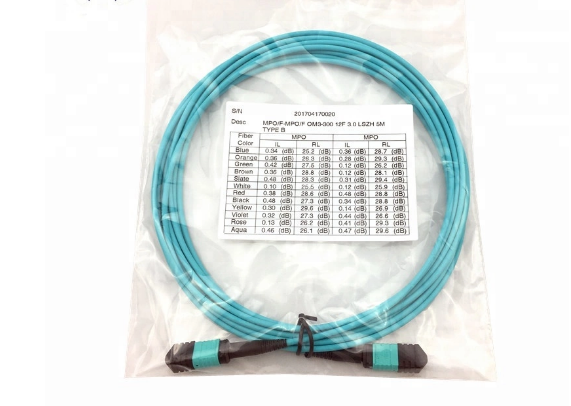

| roduct name | MPO(f) to MPO(f) 12f LSZH 3.0m OM3 low loss fiber optic patch cord |
| Jump line colors | cyan |
| Call waiting times | >1000times |
| Tensile strength | 200 n or more |
| Cable diameter | 2 mm |
| Plug | ceramic core |
| Tensile strength | 45 kg |
| Jump line pattern | Multi-mode |
| Droop | <1db |
| Working wavelength | 1310 nm to 1550 nm |
| Working temperature | 40°C~85 °C |
| The minimum bending radius | 3.8cm |
| Material | high quality environmental protection of PVC material |
| Vibration test | <0.1db |
FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 5000 Squae meters area located in Dapeng New district in ShenZhen,GuangDong,P.R.C.
2. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
3. What is your warranty period?
1 years warranty.
4. Which kind of certification you have ?
ISO9001, SGS, UL, RoHs.
5.What is your delivery time?
Small orde will be finished within 3-4 working days. Bulk order will be shipped within 7-15 working days.
6. What is your payment way?
T/T, Credit card, Western Union and Paypal.
7. Can you supply customized products and logo?
Yes. We supply OEM&ODM service. Welcome to get your drawing and we will check the price to you at the first time.
