Waterproof ADSS Aerial Fiber Optic Cable 24 48 72 Core 100m Span Gel Free

Product Categories

ADSS Optical Cable [37]
OPGW Fiber Cable [10]
Duct Fiber Optic Cable [29]
Gel Free Cable [22]
Tactical Fiber Optic Cable [35]
Submarine Fiber Cable [13]
Hybrid Fiber Optic Cable [9]
Direct Burial Fiber Optic Cable [29]
Non Metallic Fiber Optic Cable [17]
Self Supporting Aerial Cable [7]
Figure 8 Fiber Optic Cable [17]
Anti Rodent Fiber Optic Cable [8]
Flame Retardant Cable [4]
FTTH Drop Cable [43]
Underwater Fiber Optic Cable [5]
Fiber Optic Cable Accessories [71]

Shenzhen Zhaoxian Special Optical Fiber Cable Technology Co., Ltd.

Contact Now

Waterproof ADSS Aerial Fiber Optic Cable 24 48 72 Core 100m Span Gel Free

Name: Waterproof ADSS Aerial Fiber Optic Cable 24 48 72 Core 100m Span Gel Free
Brand: ZXOFC
Price: 1 USD

China Waterproof ADSS Aerial Fiber Optic Cable 24 48 72 Core 100m Span Gel Free wholesale

Brand Name : ZXOFC

Model Number : ZXOFC-ADSS-gel-free

Certification : CE,ISO9001,ROSH

Place of Origin : ShenZhen,China

MOQ : 2KM

Price : Negotiable

Payment Terms : T/T, Western Union,Paypal,Credit card

Supply Ability : 10000KM per month

Delivery Time : 1-2 weeks according to the lengths

Packaging Details : Plywood drum or Iron wooden drum or Fumigated wooden drum or Cardboard box (mainly for FTTH cable) Optional

Gel : Gel free,no gel in the cable

Fiber type : Singlemode or multimode,om1,om2,om3,om4

Outer sheath : AT,MDPE,HDPE

Fiber count : 144 core

Structure : Stranded Loose tube

Span : 50-150meter

Central strength Member : FRP

Application : Aerial,direct buried,duct

Contact Now

Gel-Free ADSS Aerial Fiber Optical Cable 12 24 48 72 96 144 288 core ADSS 100m Span

Description

Gel free or “all dry” Dielectric Self-Supporting (ADSS) Cable is designed so its tensile strength gel free member will provide the necessary resistance to sag to overcome the effects of its own weight, ice and wind loading, so the cable span will remain serviceable, even over very long spans, for its entire lifetime. It is gel-free, containing water blocking powder, yarn, and ribbon to block water entry into the cable. This document describes the placement method of Gel free ADSS Cable.

These cables are designed to be strong enough to allow longer lengths of cable to be installed between support towers. ADSS cable is designed to be light weight and small in diameter to reduce the load on tower structures due to cable weight, wind, and ice. ADSS(All-Dielectric Self-Supporting) cable is ideal for installation in distribution as well as transmission environments, even when live-line installations are required. There is no support or messenger wire required, so installation is achieved in a single pass, making ADSS an economical and simple means of building a fiber optic network.

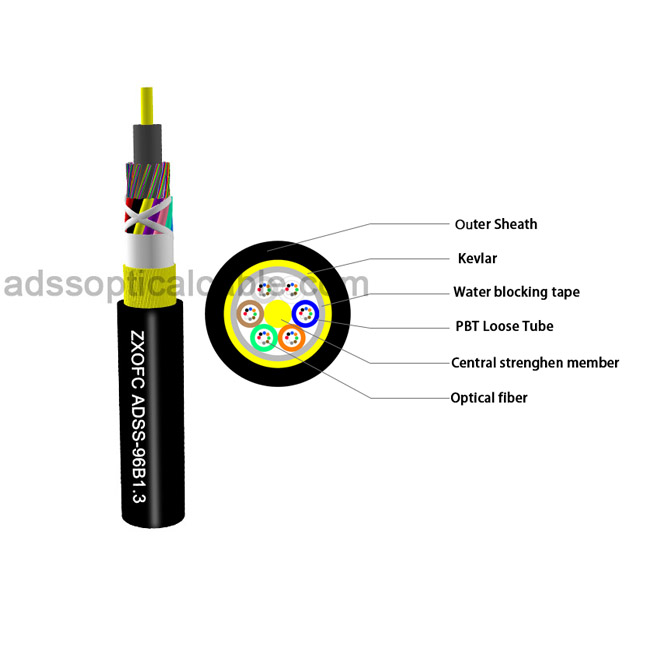

Cable Cross-section diagram

Waterproof ADSS Aerial Fiber Optic Cable 24 48 72 Core 100m Span Gel Free

Technique Parameters

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm

Our services

Our Certificate

Package and delivery

Waterproof ADSS Aerial Fiber Optic Cable 24 48 72 Core 100m Span Gel Free

Package:

Standard Wooden Drum With Protection.

Standard reel length:2/3/4/5km/reel,other length is also available

Shipping

For the large order , we usually ship the cable by sea .

For small order , we can ship them by sea (LCL) or by air /by exress

(DHL,UPS,FEDE or TNT..) as your request .

FAQ

1. Are you the real factory?
Yes,we are the real factory with 20 years’ history.

2. What is your fiber brand?
Fiber brands including :ZXOFC

3. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

4. Product quality guarantee period?
25 years’ Guarantee for fiber optic cable

5. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

6. What is your delivery time?
Within 24 hours for 30KM normal kinds of fiber optic cable;
1 ~2 days for fiber optic patch cords with 10000 connectors.

7. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

8. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.

9. Payment
For large orders: T/T by advanced deposit
For small orders: T/T,Western Union and Paypal are acceptable.

10. Shipping & Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services,any of which is optional.
